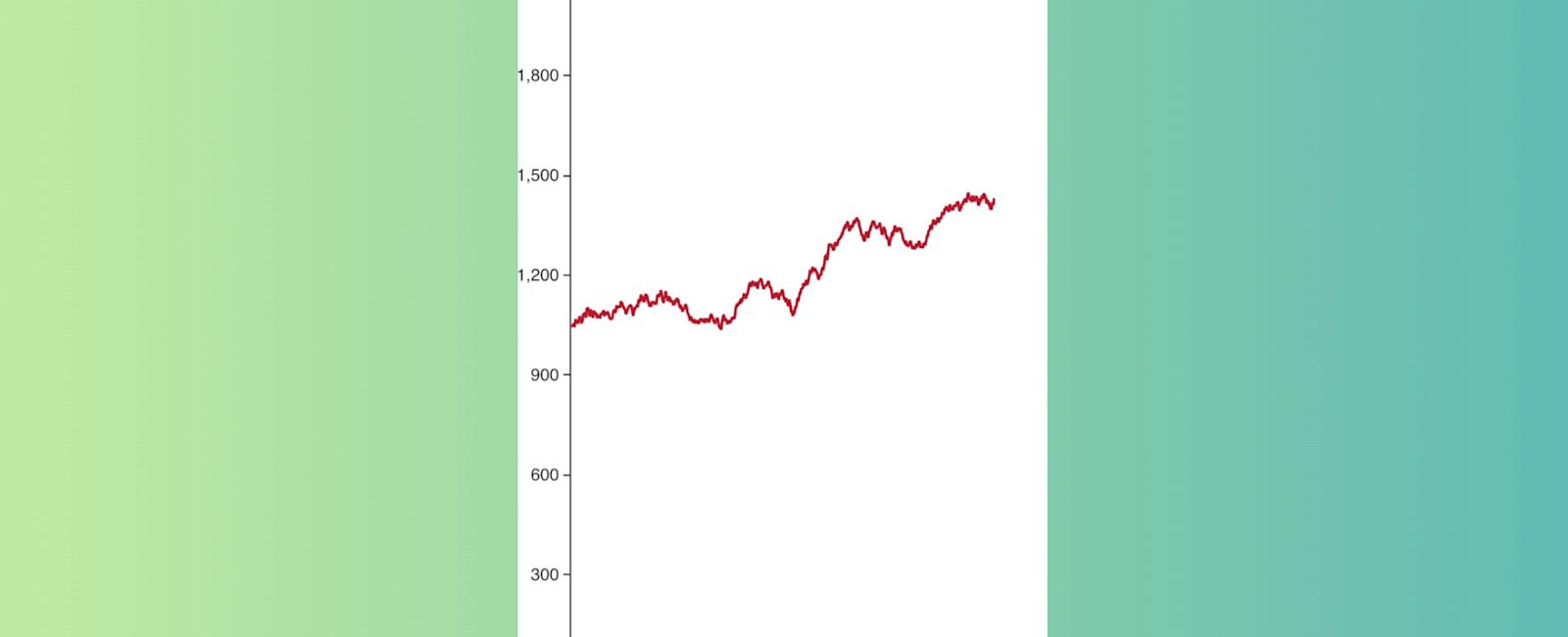

Dynamic E-charts wrapper

By Utkarsh Lubal
Published in Charts
April 01, 2023
1 min read
Dynamic E-charts wrapper

Table Of Contents

01
Introduction
02
Installation
03
Example
04
Tutorial

Introduction

A React Native wrapper for the popular echarts charting framework. With this library you can create complex, interactive charts with great performance on mobile devices. The fact that the charting framework purely runs in a webview makes it very stable to upcomming React-Native versions. On the other hand it is not easy to make a two way data communication between the chart (running in the webview Javascript thread) and the React-Native Javascript thread. With this library you can even build the more complex chart options of echarts. You can inject custom javascript code within the webview which allows you to access the chart api (detect taps, selections etc…)

Properties

NameTypeExampleDescription
optionobjecttake a look at the examplesAllows you to set the chart configuration. Never access anything related to your React-Native Javascript code within the options object. It won’t work! Take a look at onData and sendData
customTemplatePathstringfile:///android_assets/index.htmlUse this property if you want to tell echarts where to look for a custom html template. You can use RNFS to get the directory path for Android/iOS.
additionalCodestringalert('hello world');Allows you to inject javascript code in the webview. It is used to access the echarts api to create more complex charts (e.G. callback on chart tap). Take a look at More complex example.
backgroundColorstringrgba(255,101,80,0.4), red, #4287f5Set the background color of the chart

Methods / Callbacks

NameExampleDescription
setOptionthis.chart.setOption(option);Allows you to set a chart configuration dyanmically (e.g. after initial setup with option prop). Take a look at Dynamic loading example
getOptionthis.chart.getOption((data) => console.log(data));Allows you to get the current option of a chart instance. First parameter is the result-callback. If you don’t pass a second parameter the result-callback will be triggered with all option properties. Second parameter is an array of the e-charts-option-properties (e.g. ['dataZoom', 'series']) you want to get. Take a look atDynamic loading example
clearthis.chart.clear();Allows you to clear the chart. Take a look at More complex example
onData<ECharts onData={this.onData} />This is the only way to receive data from the chart. It is called with the data provided by sendData (Webview functions).
setBackgroundColorthis.chart.setBackgroundColor('#ecf542');Allows you to set the background color of the chart.

Webview functions

These functions can be called from code injected with additionalCode or within the echarts option.

NameExampleDescription
sendDatasendData('Hello World')With this function you can communicate with React Native. Attention you can only send strings over to React-Native. sendData('Hello World') will call onData on the React Native side.

Webview variables

NameExampleDescription
chartchart.on(....)Allows you to access the echarts api (https://github.com/itinance/react-native-fs).

Installation

yarn add react-native-echarts-wrapper

OR

  npm install --save @echarts-wrapper/react

Example

import React, { Component } from "react";
import { StyleSheet, SafeAreaView, Button } from "react-native";
import { ECharts } from "react-native-echarts-wrapper";

export default class App extends Component {
  onRef = ref => {
    if (ref) {
      this.chart = ref;
    }
  };

  onData = param => {};

  initChart = () => {
    function randomData() {
      now = new Date(+now + oneDay);
      value = value + Math.random() * 21 - 10;
      return {
        name: now.toString(),
        value: [
          [now.getFullYear(), now.getMonth() + 1, now.getDate()].join("/"),
          Math.round(value)
        ]
      };
    }

    var data = [];
    var now = +new Date(1997, 9, 3);
    var oneDay = 24 * 3600 * 1000;
    var value = Math.random() * 1000;
    for (var i = 0; i < 1000; i++) {
      data.push(randomData());
    }

    option = {
      title: {
        text: "Dynamic Chart"
      },
      tooltip: {
        trigger: "axis",
        formatter: function(params) {
          params = params[0];
          var date = new Date(params.name);
          return (
            date.getDate() +
            "/" +
            (date.getMonth() + 1) +
            "/" +
            date.getFullYear() +
            " : " +
            params.value[1]
          );
        },
        axisPointer: {
          animation: false
        }
      },
      xAxis: {
        type: "time",
        splitLine: {
          show: false
        }
      },
      yAxis: {
        type: "value",
        boundaryGap: [0, "100%"],
        splitLine: {
          show: false
        }
      },
      series: [
        {
          type: "line",
          showSymbol: false,
          hoverAnimation: false,
          data: data
        }
      ]
    };

    this.chart.setOption(option);

    //no query parameter: whole option object
    this.chart.getOption(option => {
      console.log(option);
    });

    //with query parameter
    this.chart.getOption(
      option => {
        console.log(option);
      },
      ["dataZoom", "series"]
    );

    const instance = this.chart;

    setInterval(function() {
      for (var i = 0; i < 5; i++) {
        data.shift();
        data.push(randomData());
      }

      instance.setOption({
        series: [
          {
            data: data
          }
        ]
      });
    }, 100);
  };

  render() {
    return (
      <SafeAreaView style={styles.chartContainer}>
        <Button title="Start" onPress={this.initChart} />

        <ECharts
          option={{}}
          ref={this.onRef}
          additionalCode={this.additionalCode}
          onData={this.onData}
        />
      </SafeAreaView>
    );
  }
}

const styles = StyleSheet.create({
  chartContainer: {
    flex: 1,
    backgroundColor: "#F5FCFF"
  }
});

Tutorial

Coming Soon…


Previous Article
Loading
Next Article
Card View
Utkarsh Lubal

Utkarsh Lubal

Full Stack Developer

Related Posts

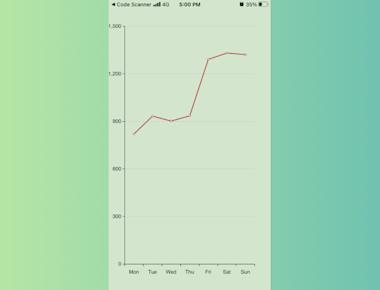

Simple E-charts wrapper
