Segmented control tab

By Utkarsh Lubal

May 06, 2023

1 min read

Introduction

A react native component with the same concept of react native’s SegmantedControlIOS, Primarily built to support both IOS and Android. 💡

Props

Name	Description	Default	Type
values	titles of tabs	`['One', 'Two', 'Three']`	array
selectedIndex	index of tab item to be selected initially	[0]	number
selectedIndices	Array of indices of tab items to be selected initially - when multiple prop is true else it will take selectedIndex	[0]	arrayOf(PropTypes.number)
enabled	Boolean to enable or disable the component	true	bool
multiple	Boolean which enables the multiple selection option	false	bool
borderRadius	borderRadius of whole tab	5	number
tabsContainerStyle	external styles can be passed to override the default styles of the segmentedControl wrapper	base styles added in SegmentedControlTab.js	object(styles)
tabsContainerDisableStyle	Custom style that can be passed when `enable` is set to false	default style `opacity: 0.6`	object(styles)
tabStyle	external styles can be passed to override the default styles of the tabs	base styles added in SegmentedControlTab.js	object(styles)
firstTabStyle	external styles can be passed to override the default styles of the first tab	base styles added in SegmentedControlTab.js	object(styles)
lastTabStyle	external styles can be passed to override the default styles of the last tab	base styles added in SegmentedControlTab.js	object(styles)
tabTextStyle	external styles can be passed to override the default styles of the tab title	base styles added in SegmentedControlTab.js	object(styles)
activeTabStyle	external styles can be passed to override the default styles of the active tab	base styles added in SegmentedControlTab.js	object(styles)
activeTabTextStyle	external styles can be passed to override the default styles of the active tab text	base styles added in SegmentedControlTab.js	object(styles)
badges	badges values to display	`[1, 2, 3]`	array
tabBadgeContainerStyle	external style can be passed to override the default style of the badge container	base styles added in SegmentedControlTab.js	object(styles)
activeTabBadgeContainerStyle	external style can be passed to override the default style of the active badge container	base styles added in SegmentedControlTab.js	object(styles)
tabBadgeStyle	external style can be passed to override the default style of the badge text	base styles added in SegmentedControlTab.js	object(styles)
activeTabBadgeStyle	external style can be passed to override the default style of the active badge text	base styles added in SegmentedControlTab.js	object(styles)
onTabPress	call-back function when a tab is selected	() => {}	func
allowFontScaling	whether the segment & badge text should allow font scaling (default matches React Native default)	true	bool
accessible	enables accessibility for each tab	true	bool
accessibilityLabels	Reads out the given text on each tab press when voice over is enabled. If not set, uses the text passed in as values in props as a fallback	[‘Label 1’, ‘Label 2’, ‘Label 3’]	array
activeTabOpacity	Opacity value to customize tab press	1	number

Installation

npm install react-native-segmented-control-tab –save

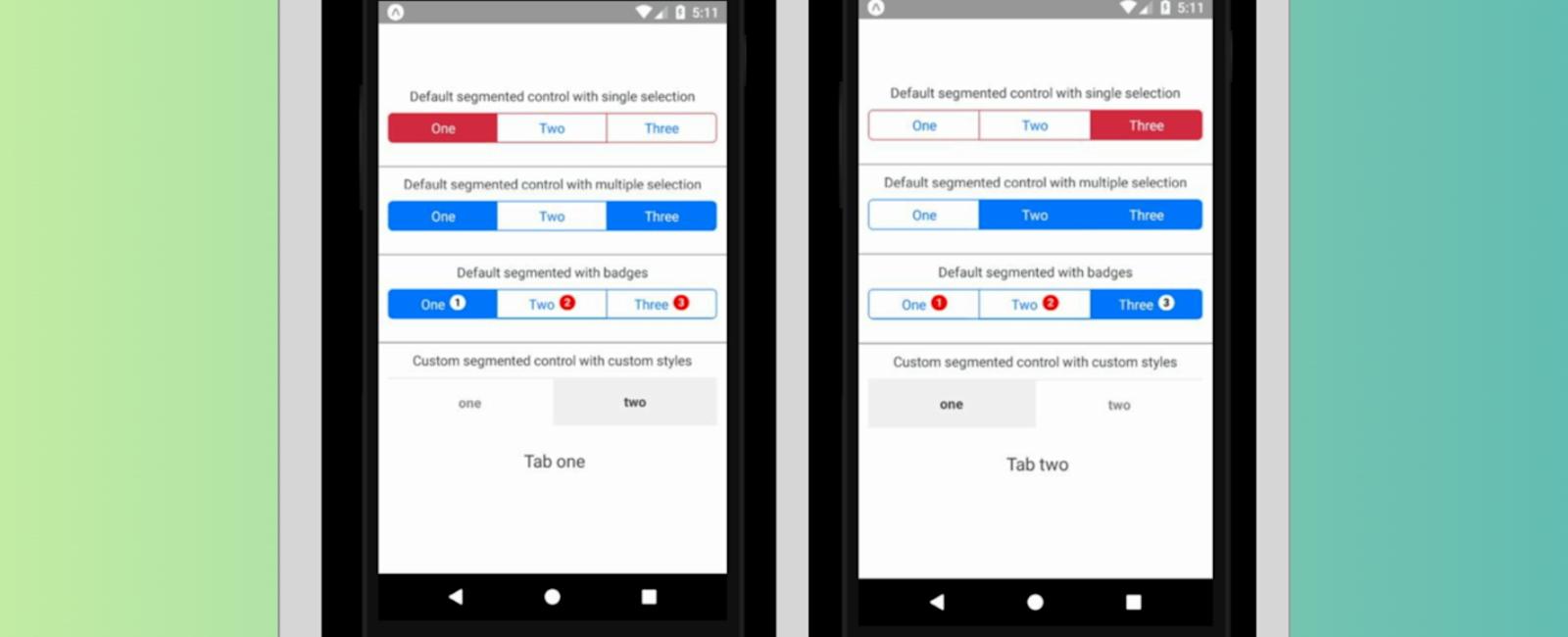

Example

import React, { Component } from 'react'
import {
  StyleSheet,
  Text,
  View,
} from 'react-native'
import SegmentedControlTab from 'react-native-segmented-control-tab'

class SegmentedView extends Component<*, *> {
  constructor() {
    super()
    this.state = {
      selectedIndex: 0,
      selectedIndices: [0],
      customStyleIndex: 0,
    }
  }

    handleSingleIndexSelect = (index: number) => {
      this.setState(prevState => ({ ...prevState, selectedIndex: index }))
    }

    handleMultipleIndexSelect = (index: number) => {
      const { selectedIndices } = this.state

      if (selectedIndices.includes(index)) {
        this.setState(prevState => ({
          ...prevState,
          selectedIndices: selectedIndices.filter((i) => i !== index),
        }))
      } else {
        this.setState(prevState => ({
          ...prevState,
          selectedIndices: [
            ...selectedIndices,
            index,
          ],
        }))
      }
    }

    handleCustomIndexSelect = (index: number) => {
      this.setState(prevState => ({ ...prevState, customStyleIndex: index }))
    }

    render() {
      const { selectedIndex, selectedIndices, customStyleIndex } = this.state
      return (
        <View style={styles.container}>
          <Text style={styles.headerText}>Default segmented control with single selection</Text>
          <SegmentedControlTab
            selectedIndex={selectedIndex}
            tabStyle={styles.tabStyle}
            activeTabStyle={styles.activeTabStyle}
            onTabPress={this.handleSingleIndexSelect}
          />
          <View style={styles.Seperator} />
          <Text style={styles.headerText}>Default segmented control with multiple selection</Text>
          <SegmentedControlTab
            multiple
            selectedIndices={selectedIndices}
            onTabPress={this.handleMultipleIndexSelect}
          />
          <View style={styles.Seperator} />
          <Text style={styles.headerText}>Default segmented with badges</Text>
          <SegmentedControlTab
            badges={[1, 2, 3]}
            selectedIndex={selectedIndex}
            onTabPress={this.handleSingleIndexSelect}
          />
          <View style={styles.Seperator} />
          <Text style={styles.headerText}>Custom segmented control with custom styles</Text>
          <SegmentedControlTab
            values={['one', 'two']}
            selectedIndex={customStyleIndex}
            onTabPress={this.handleCustomIndexSelect}
            borderRadius={0}
            tabsContainerStyle={{ height: 50, backgroundColor: '#F2F2F2' }}
            tabStyle={{ backgroundColor: '#F2F2F2', borderWidth: 0, borderColor: 'transparent' }}
            activeTabStyle={{ backgroundColor: 'white', marginTop: 2 }}
            tabTextStyle={{ color: '#444444', fontWeight: 'bold' }}
            activeTabTextStyle={{ color: '#888888' }}
          />
          {customStyleIndex === 0
                    && <Text style={styles.tabContent}> Tab one</Text>}
          {customStyleIndex === 1
                    && <Text style={styles.tabContent}> Tab two</Text>}

        </View>
      )
    }
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: 'white',
    padding: 10,
  },
  headerText: {
    padding: 8,
    fontSize: 14,
    color: '#444444',
  },
  tabContent: {
    color: '#444444',
    fontSize: 18,
    margin: 24,
  },
  Seperator: {
    marginHorizontal: -10,
    alignSelf: 'stretch',
    borderTopWidth: 1,
    borderTopColor: '#888888',
    marginTop: 24,
  },
  tabStyle: {
    borderColor: '#D52C43',
  },
  activeTabStyle: {
    backgroundColor: '#D52C43',
  },

})

export default SegmentedView;
